Ultrathin Solar Cells Reach a Record of Nearly 20% Efficiency

C2N has succeeded in trapping sunlight with 20 percent efficiency in a solar cell with an ultrathin absorbing layer of GaAs on nanostructured back mirror

Ultrathin Solar 20 Percent Efficiency

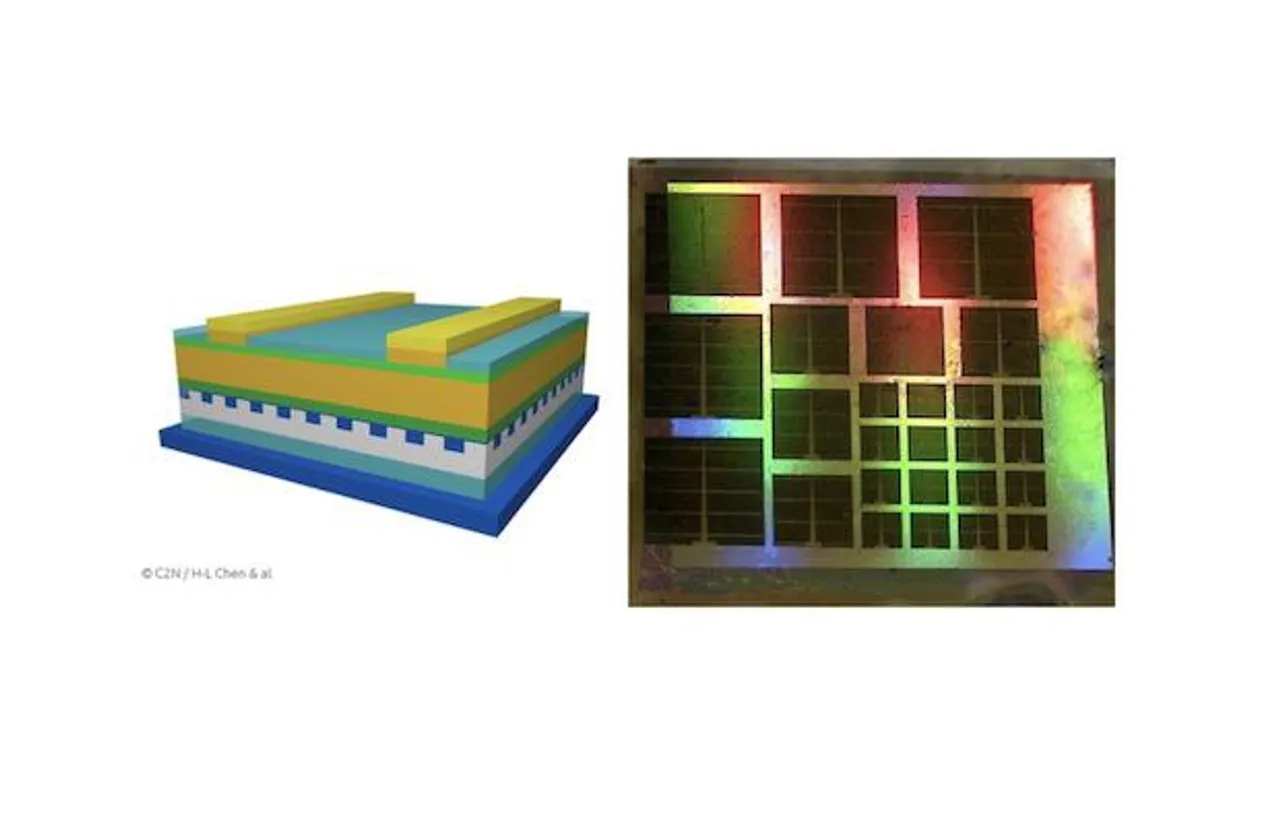

Researchers at the Centre de Nanosciences et de Nanotechnologies (C2N), in collaboration in particular with researchers at the German Fraunhofer ISE, have succeeded to trap sunlight efficiently in a solar cell thanks to an ultrathin absorbing layer made of 205 nm-thick GaAs on a nanostructured back mirror. With this new architecture, an efficiency of nearly 20 percent was obtained.

Up to now, the laboratory state-of-the-art 20%-efficient solar cells required at least 1 micrometer-thick layers of semiconductor material (GaAs, CdTe or copper indium gallium selenide -CIGS-), or even 40 µm or more in the case of silicon.

A significant thickness reduction would enable material savings of scarce materials like Tellerium or Indium and industrial throughput improvements due to shorter deposition times. However, thinning absorber automatically reduces absorption of sunlight and conversion efficiency. A flat mirror at the backside of the cell can help and lead to double-pass absorption, but no more. Previous attempts of light trapping have been greatly limited in performance by the optical and electrical losses.

Researchers of the team led by Stéphane Collin and Andrea Cattoni at the C2N, in collaboration with Fraunhofer ISE, have developed a new strategy to trap light in ultrathin layers made of only 205 nm-thick gallium arsenide, a semiconductor of the III-V family.

The guiding idea has been to conceive a nanostructured back mirror to create multiple overlapping resonances in the solar cell, identified as Fabry–Perot and guided-mode resonances. They constrain light to stay longer in the absorber, resulting in efficient optical absorption despite the low quantity of material.

Thanks to numerous resonances, absorption is enhanced over a large spectral range that fits the solar spectrum from the visible to the infrared. Controlling the fabrication of patterned mirrors at the nanometer scale has been a key aspect of the project. The team used nano-imprint lithography to directly emboss directly a sol-gel derived film of titanium dioxide, an inexpensive, rapid and scalable technique.

The work published in Nature Energy demonstrates that this architecture should enable 25 percent efficiency in the short term. Even if the limits are still unknown, the team is convinced that the thickness could be further reduced without efficiency loss, at least by a factor of two.

GaAs solar cells are still commercially limited to space application due to their cost. However, researchers are already working on how to extend this concept for large-scale photovoltaics made of CdTe, CIGS or silicon materials.
