Researchers Create Hydrogen Fuel From Seawater

A Stanford-led team has developed a way to harness seawater, Earth’s most abundant source, for chemical energy using solar energy.

Hongjie Dai and his research lab at Stanford University have developed a prototype that can generate hydrogen fuel from seawater.

A team of researcher from Stanford University has devised a way to generate hydrogen fuel using solar power, electrodes and saltwater from San Francisco Bay.

Their findings were published in the Proceedings of the National Academy of Sciences, demonstrating a new way of separating hydrogen and oxygen gas from seawater via electricity. Existing water-splitting methods rely on highly purified water, which is a precious resource and costly to produce.

Theoretically, to power cities and cars, “you need so much hydrogen it is not conceivable to use purified water,” said Hongjie Dai, J.G. Jackson and C.J. Wood professor in chemistry in Stanford’s School of Humanities and Sciences and co-senior author on the paper. “We barely have enough water for our current needs in California.”

Hydrogen is an appealing option for fuel because it doesn’t emit carbon dioxide, Dai said. Burning hydrogen produces only water and should ease worsening climate change problems.

Dai said his lab showed proof-of-concept with a demo, but the researchers will leave it up to manufacturers to scale and mass produce the design.

As a concept, splitting water into hydrogen and oxygen with electricity — called electrolysis — is a simple and old idea: a power source connects to two electrodes placed in water. When the power turns on, hydrogen gas bubbles out of the negative end — called the cathode — and breathable oxygen emerges at the positive end — the anode. But negatively charged chloride in seawater salt can corrode the positive end, limiting the system’s lifespan. Dai and his team wanted to find a way to stop those seawater components from breaking down the submerged anodes.

The researchers discovered that if they coated the anode with layers that were rich in negative charges, the layers repelled chloride and slowed down the decay of the underlying metal.

They layered nickel-iron hydroxide on top of nickel sulphide, which covers a nickel foam core. The nickel foam acts as a conductor — transporting electricity from the power source — and the nickel-iron hydroxide sparks the electrolysis, separating water into oxygen and hydrogen. During electrolysis, the nickel sulphide evolves into a negatively charged layer that protects the anode. Just as the negative ends of two magnets push against one another, the negatively charged layer repels chloride and prevents it from reaching the core metal.

According to Michael Kenney, a graduate student in the Dai lab and co-lead author on the paper, “With this layer, the electrode is able to go more than a thousand hours (without decay)”

Previous studies attempting to split seawater for hydrogen fuel had run low amounts of electric current because corrosion occurs at higher currents. But Dai, Kenney and their colleagues were able to conduct up to 10 times more electricity through their multi-layer device, which helps it generate hydrogen from seawater at a faster rate. “I think we set a record on the current to split seawater,” Dai said.

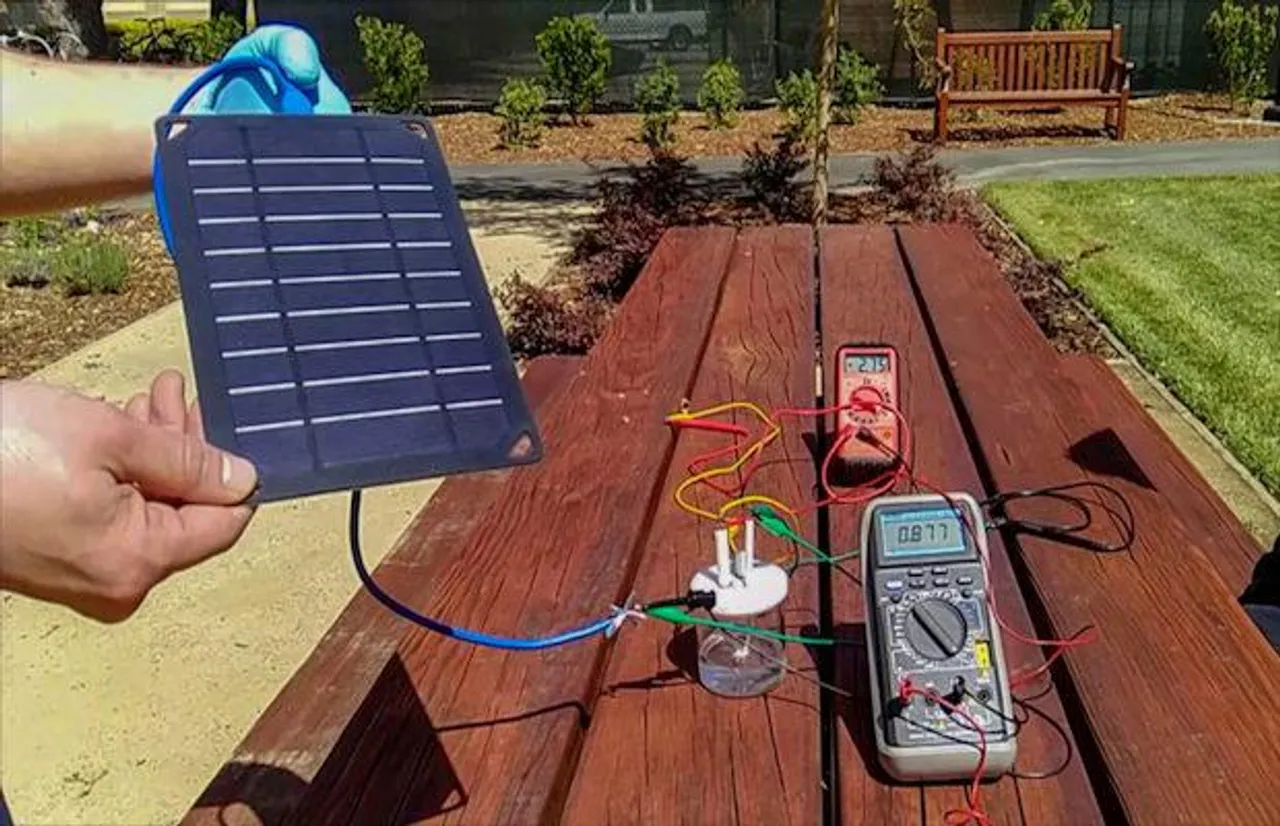

The team members conducted most of their tests in controlled laboratory conditions, where they could regulate the amount of electricity entering the system. But they also designed a solar-powered demonstration machine that produced hydrogen and oxygen gas from seawater collected from San Francisco Bay.

Looking back, Dai and Kenney can see the simplicity of their design. “If we had a crystal ball three years ago, it would have been done in a month,” Dai said. But now that the basic recipe is figured out for electrolysis with seawater, the new method will open doors for increasing the availability of hydrogen fuel powered by solar or wind energy.
