Growatt Introduces New Generation of MAX Inverter Series For C&I Segment

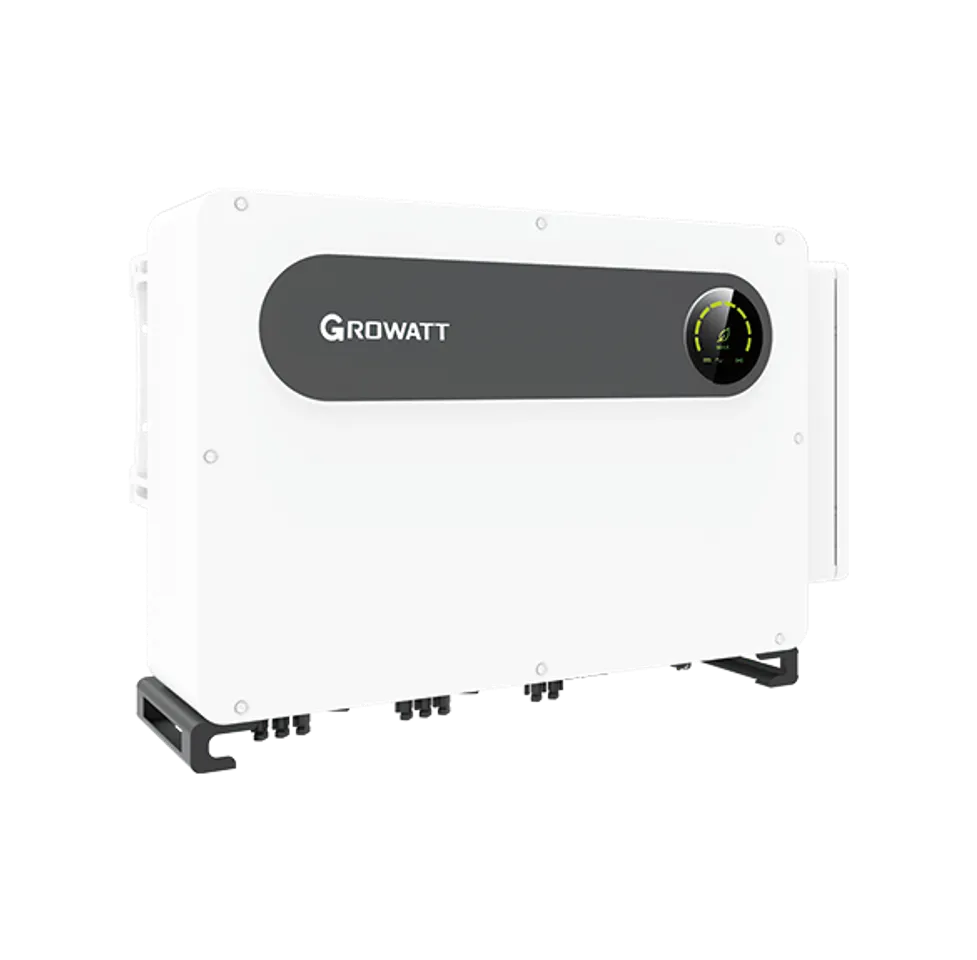

Growatt MAX Inverter Series

Growatt has introduced an upgraded version of its MAX inverter series.

The demand for solar panels with higher power outputs continues to grow, driven by the need for more energy generation in limited spaces, such as commercial and industrial scenarios. Ongoing development of solar cell technologies have contributed to the development of high-current modules.

The MAX 100~125KTL3-X series of inverters from Growatt had thus been introduced in both Indian and global markets with this in mind. Following the success of the product, Growatt has introduced an enhanced version, the MAX 100~125KTL3-X2. This upgraded model features 8 MPPTs with an increased input current capacity of 45A per MPPT, that is, 22.5A per string. As a result, it becomes easier to integrate higher watt-peak panels and bi-facial panels into the solar system.

Solar Inverter Firm Growatt Pins Hopes On its MAX Series To Boost Growth

Also Read

An offering from the MAX inverter series, the MAX-X2 inverter enables a DC/AC ratio of up to 200%, contributing to a lower Levelized Cost of Energy (LCOE) for PV plants. With a broad MPPT range spanning from 180V to 1000V, the inverter can initiate operation early in the morning and extend its functioning into the late evenings, thereby maximizing the time available for solar energy harvesting. Growatt ensures operational safety by incorporating Type II Surge Protective Devices (SPD) on both DC and AC sides, a fuse-free design, an integrated DC switch, IP66 protection, and additional safety features such as optional active arcing protection (AFCI) and built-in PID recovery.

Growatt provides a comprehensive monitoring solution designed for remote tracking, which empowers businesses to make informed decisions by leveraging the insights gathered from the monitored data. Growatt streamlines the control of numerous inverters through its Smart Energy Manager, capable of implementing system export limitation and PF control. For end users, Growatt has introduced ShinePhone and ShineServer, allowing them to monitor system operations at any time. Additionally, the company offers an OSS (Online Smart Services) system for installers and distributors, facilitating convenient online services like intelligent I/V scan and diagnosis, remote configuration, and firmware upgrades. This approach enables the resolution of 60% of issues without the need for on-site visits, effectively lowering operation and maintenance costs.

Growatt has also provided its inverters for the 2 MW floating solar project in Chandigarh.
