Sand Particles can be used for Solar Energy

Solar Energy

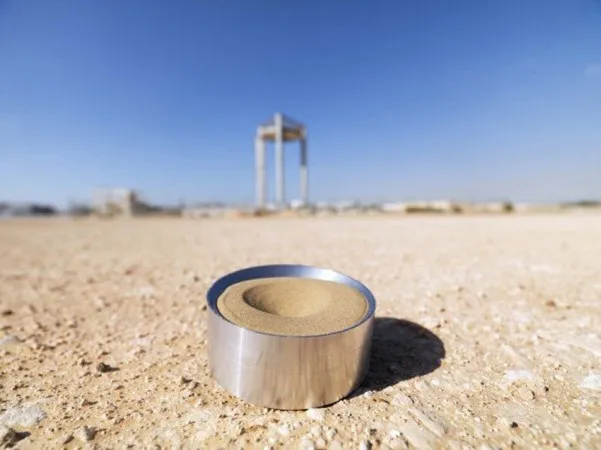

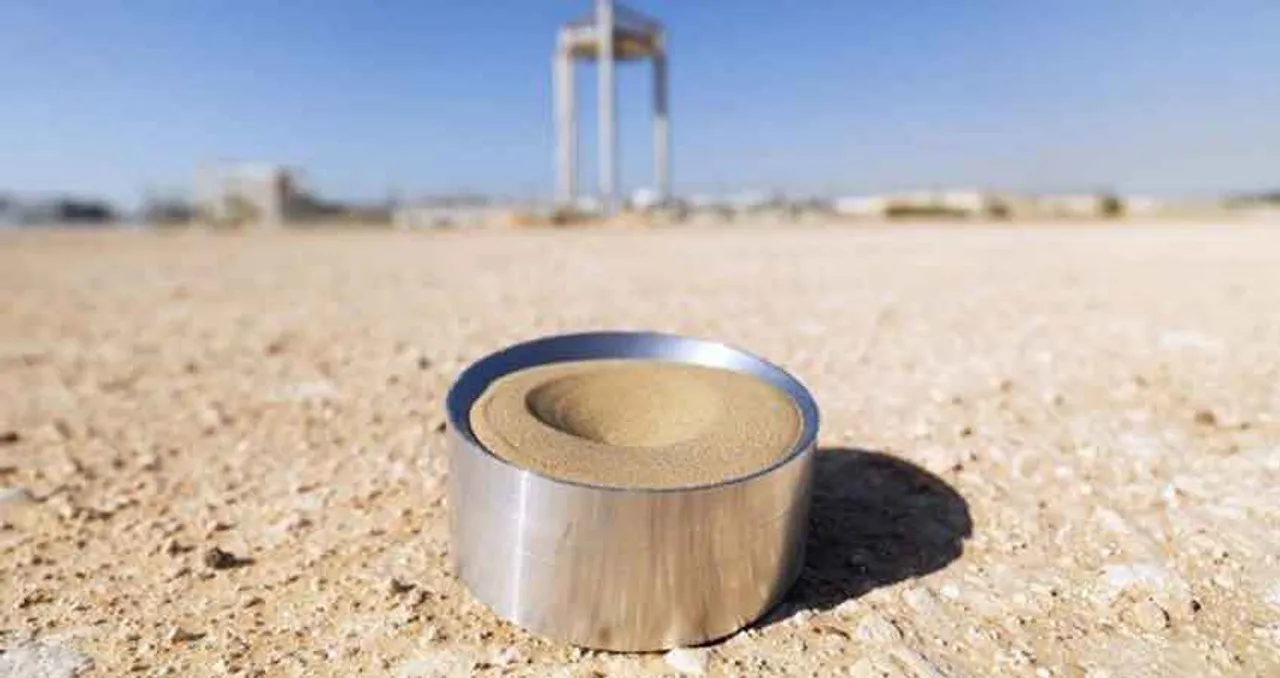

Desert sand from the UAE can now be considered possible thermal energy storage (TES) material, say researchers. Its thermal stability, specific heat capacity, and tendency to agglomerate have been studied at high temperatures.Image courtesy of Masdar Institute of Science and Technology



When sun is at its zenith, its known fact that with bare feet it’s hard to wobble around the beach, now researchers is known to have demonstrated solar energy using sand particle.

The research project called ‘Sandstock’ has been seeking to develop a sustainable and low-cost gravity-fed solar receiver and storage system through sand particles, as the heat collector, heat transfer and thermal energy storage media.

The Masdar Institute of Science and Technology researchers consider desert sand from the UAE as possible thermal energy storage (TES) material. Its thermal stability, specific heat capacity, and tendency to agglomerate have been studied at high temperatures.

Dr. Behjat Al Yousuf, Interim Provost, Masdar Institute, said, “The research success of the Sandstock project illustrates the strength of our research and its local relevance. With the launch of the MISP in November, we have further broadened the scope of our solar energy research and we believe more success will follow in the months ahead.”

Replacing the typical heat storage materials used in TES systems — synthetic oil and molten salts — with inexpensive sand can increase plant efficiency due to the increased working temperature of the storage material and therefore reduce costs. A TES system based on such a local and natural material like sand also represents a new sustainable energy approach that is relevant for the economic development of Abu Dhabi’s future energy systems.

The analyses showed that it is possible to use desert sand as a TES material up to 800-1000 °C. The sand chemical composition has been analyzed with the X-ray fluorescence (XRF) and X-ray diffraction (XRD) techniques, which reveal the dominance of quartz and carbonate materials. The sand’s radiant energy reflectiveness was also measured before and after a thermal cycle, as it may be possible to use the desert sand not only as a TES material but also as a direct solar absorber under concentrated solar flux.

Dr Nicolas Calvet said, “The availability of this material in desert environments such as the UAE allows for significant cost reductions in novel CSP plants, which may use it both as TES material and solar absorber. The success of the Sandstock project reflects that usability and practical benefits of the UAE desert sand.”

The next step of the project is to test an improved prototype at the pre-commercial scale at the Masdar Institute Solar Platform (MISP) using the beam down concentrator, potentially in collaboration with an industrial partner.

The research driven university has asserted that its researchers have successfully demonstrated that desert sand from the UAE could be used in concentrated solar power (CSP) facilities to store thermal energy up to 1000°C.
