New architecture to produce an affordable solar cell

New architecture solars

Researchers have developed new architecture that can produce an affordable solar cell with efficiencies comparable to conventional silicon solar cells and takes very few processing steps.

The new architecture uses unconventional, transparent materials that can be placed at room temperature – the process is currently used to increase the electrical conductivity of key surfaces in solar cells.

The research published on US department of Energy proves that this simple design can lead to high conversion efficiencies, turning sunlight into electricity, makes it a useful tool to lower costs and improve performance of a wide range of solar cell designs. Additionally, this simple process could be extended to improve contacts in semiconductor transistors used to speed today’s computers.

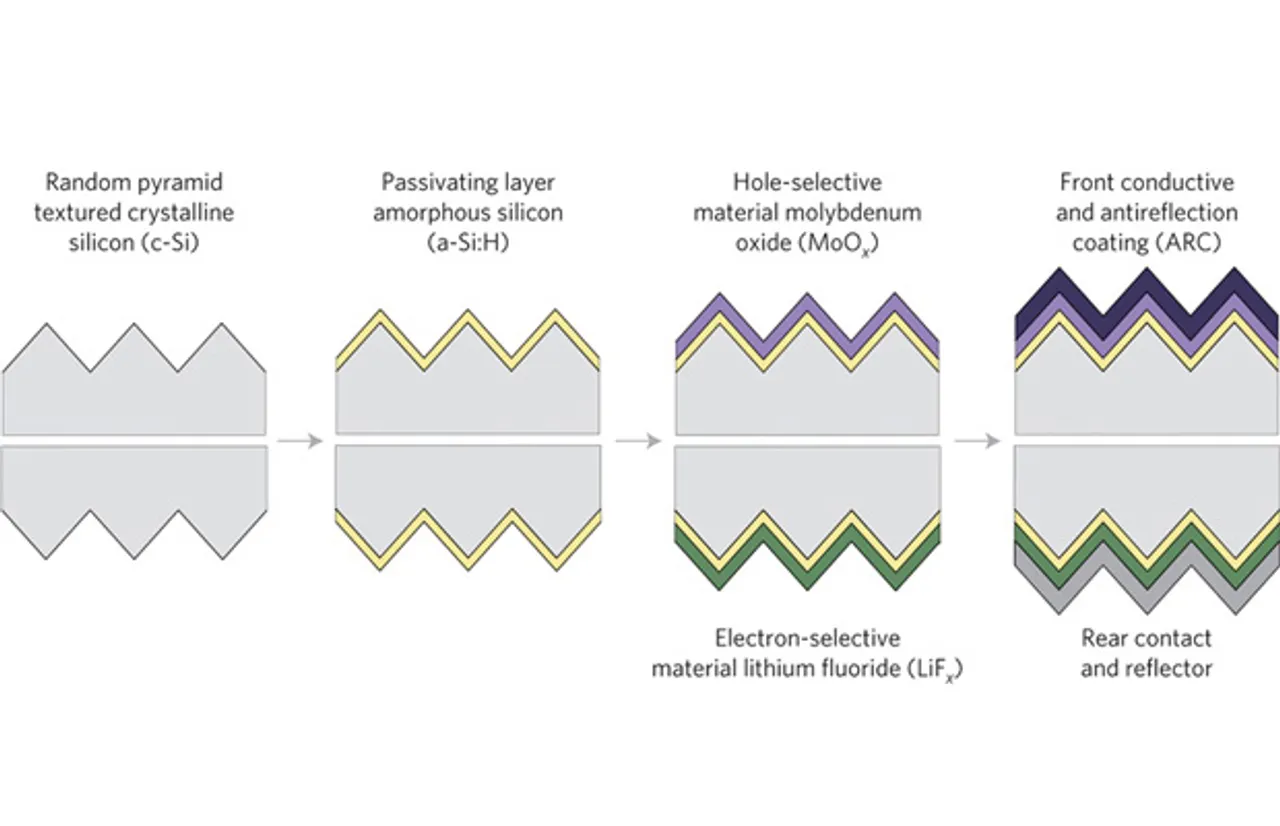

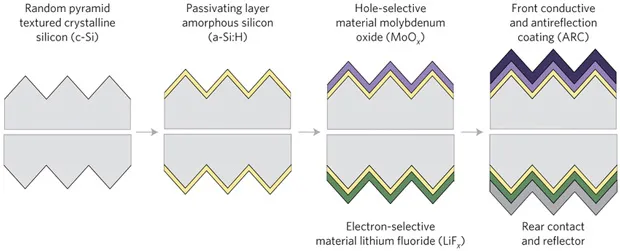

In this new architecture sunlight passes through the top layer (metal oxide) and creates electron-hole pairs in the silicon. The holes are drawn to the molybdenum oxide layer, while the electrons are drawn to the lithium fluoride layer, which can be used to produce electricity. This design uses a seven-step process and low-temperature processing to produce a device that efficiently separates photo-generated elections and holes. In this process, the crystalline silicon with a pyramid texture is coated with a passivating layer of amorphous silicon. Then, molybdenum oxide is deposited at room temperature on the top side of the device.

Molybdenum oxide advantageously is transparent, allowing the sunlight to reach the silicon core, and has the appropriate electronic properties to conduct the photo-generated holes. Next, lithium fluoride is deposited at room temperature onto the bottom side of the solar cell to draw the photo-generated electrons from the silicon core.

This simple, processing is less expensive than conventional processing for silicon solar cells that requires chemical doping at high temperatures to create contacts that separate the photo-generated electrons and holes. Impressively, the simplified architecture achieves solar energy conversion comparable to conventional silicon solar cells at a lower cost.
