Rooftop Solar PV Power Plants Under Net Metering Policy in Punjab

A light to shine your Today’s with power and tomorrow’s with brightening bank balances. “Bank your Electricity, Bank your Money Adopt Roof Top Net Metering”

net metering

Information Guide:

FOR INSTALLATION OF ROOF TOP SOLAR PV POWER PLANTS UNDER NET METERING POLICY IN PUNJAB

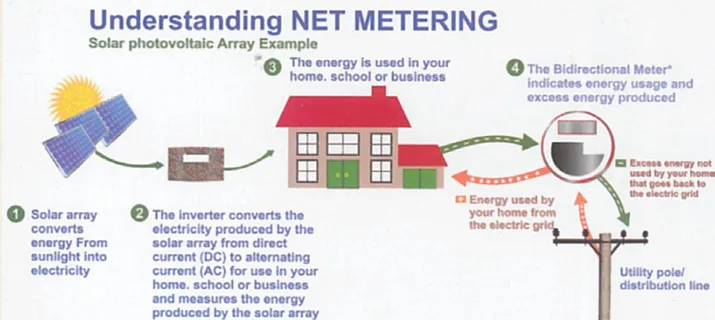

WHAT IS NET METERING ?

Net metering is the process through which you attain a “dual – benefit “by installing a solar power plant on the roof, open space, walls of the building to generate electricity. The generated power is first used in the building as per the requirement, even at the time of power cuts and the surplus power is fed into the grid of utility (PSPCL).

KNOW THE DUAL BENEFIT ?

A bi-directional meter is installed in the supply line to register import and export of power. Net metering arrangements, thus, combine elements of captive power consumption and exchange of power with the utility. The bill is issued by utility (PSPCL) after adjustment of import and export of power.

DO YOU WANT TO INSTALL

Under Net Metering policy, all consumers of electricity having minimum sanctioned load of more than 1.25KW and who intend to generate their own electricity and willing to contribute towards environmental protection can install Solar PV plants on Roof-Tops/ Walls/Open area of individual households, industries, commercial establishment, institutions, residential complexes, schools, colleges, hospitals, sheds, cold stores, govt. and semi-govt. buildings, etc.

Know your Capacity range:

Under Net Metering Policy, Solar PV power projects of capacity ranging from 1KW to 1000KW can be installed. The maximum capacity of solar power plant to be installed in the building would be 80% of the sanctioned electricity load of that building.

Why to Adopt Net Metering

Reduction in bill, as the bill is issued by PSPCL after adjustment of export and import of power.
Generation of environment friendly, clean energy. Monthly minimum charges would not be leived by PSPCL.
Consumer becomes generator for his own electricity requirements.
Reduction in electricity consumption from the grid.
If exported power is more than the consumed power then it would be accounted and set-off in the settlement period of October to September.
The electricity duty/octori etc shall be levied only on the billed amount after adjustment of import and export of power.
Continuously supplies power to the building during power cuts through battery bank.
Surplus power is supplied to the grid of PSPCL, thus, helps in eliminating power shortage.

MNRE, GOI subsidy:

Under the scheme MNRE, GOI provides 30% subsidy for installation of solar power plants of capacity ranging from 1 KW to 500 KW

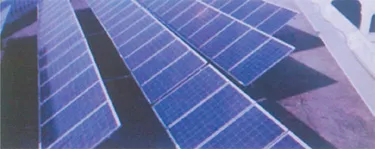

25WKP Roof Top Solar power plant at Golden Temple, Amritsar

80WKP Roof Top Solar PV power plant at Parliament House, New Delhi

Roof Top Area, Total cost & Subsidy:

1KW = 120 Sqft.
Approximate cost of 1KW = Rs. 57,751/-

Govt. Subsidy 30% = Rs. 17,325/-
Beneficiary Share 70% = Rs. 40,426/-

For higher capacity plants, Area, cost, subsidy and beneficiary share would be in proportion to the size of the plant

Economics & pay back calculation

Payback period of beneficiary share of Rs. 211815:

Plant capacity – 5kw
Plant cost – Rs. 2,88,755/-
Subsidy @ 30% – Rs. 86,625/-
Beneficiary share – Rs. 2,02,130/-
on the basis of current power tariff slab if average monthly electricity bill of 3 bed room house is 800 Units. -Rs. 5383/-

FY 2018-19 annual saving – Rs. 5,383X12 = Rs. 64,596/-
FY 2019-20 annual saving – Rs. 5,652×12 = Rs. 67,824/-
FY 2020-21annual saving – Rs. 5,934×12 = Rs. 71 ,208/-
FY 2021-22 annual saving – Rs. 6,230×12 = Rs 74,760/-

TOTAL = Rs. 2,78,388/-

Payback period = 4 year

Calculation is based on 5% average yearly escalation in power tariff

Energy calculations for different types of Houses :

lllustration-1 : 2 bedroom house:

Plant Capacity – 2 Kw
Daily generation – 8 units
Monthly generation – 240 units
Average monthly electricity consumption – 300 units (approx.)

In Punjab domestic tariff slab :

♦ 0- 100 units -Rs. 4.98/ unit

♦ 101- 300 units – Rs. 6.55/ unit

♦ 301 and above – Rs. 7.15/ unit

So after adjusting the net consumption and net generated units of power, the average electricity bill during the month shall be calculated as under:

♦ 0-100 units =100×4.98 – Rs. 498/-

♦ 101- 300 units = 200×6.55 – Rs. 1,310/-

♦ Total – Rs. 1808/-

Generation of Solar PV Plant shall be accounted for as under:

♦ First 200 units = 200×6.55 – Rs. 1,310/-

♦ Next 40 units = 40×4.98 – Rs. 199/-

♦ Average monthly saving on energy bill – Rs. 1,509/-

♦ Net Bill – Rs. 299/-

Illustration-2 : 3 bedroom house with 1 AC:

Plant Capacity – 5Kw
Daily generation – 20 units
Monthly generation – 600 units
Average monthly electricity consumption – 800 units (approx.)

In Punjab domestic tariff slab :

♦ 0 – 100 units – Rs. 4.98/ unit

♦ 101 – 300 units – Rs. 6.55/ unit

♦ 301 and above – Rs. 7.15/ unit

So after adjusting the net consumption and net generated units of power, the average electricity bill during the month shall be calculated as under:

♦ 0 – 100 units =100×4.98 – Rs. 498/-

♦ 101-300 units = 200×6.55 – Rs. 1,310/-

♦ 301 and above = 500×7.15 – Rs. 3,575/-

♦Total – Rs.5,383/-

Generation of Solar PV Plant shall be accounted for as under

♦ First 500 units = 500×7.15 – Rs.3,575/-

♦ Next 100 units = 100×655 – Rs.655/-

♦ Average monthly saving on energy bill – Rs.4,230/-

Illustration – 3 : School with 1 AC, 10 Computers and 20 Fans and 40 Lights :

Plant Capacity – 10 Kw
Daily generation – 40 units
Monthly generation – 1200 units
Average monthly electricity consumption – 1250 units (approx)

In Punjab domestic tariff slab :

♦ 0 – 100 units – Rs. 4.98/unit

♦ 101 – 300 units – Rs. 6.55/unit

♦ 301 and above – Rs. 7.15/unit

So after adjusting the net consumption and net generated units of power, the average electricity bill during the month shall be calculated as under:

♦ 0 – 100 units = 100×4.98 – Rs. 498/-

♦ 101-300 units = 200×6.55 – Rs. 1,310/-

♦ 301 – 1250 units = 950×7.15 – Rs. 6,792/-

♦ Total – Rs. 8,600/-

Generation of Solar PV Plant shall be accounted for as under.

♦ First 900 units = 900×7.15 – Rs. 6435/-

♦ Next 200 units = 200×6.55 – Rs. 1310/-

♦ Next 100 units =100×4.98 – Rs. 498/-

♦ Average monthly saving on energy bill – Rs. 8,243/-

♦ Net Bill – Rs. 357/-

Note :

(I) Roof top area means area available at the roof and on ground within the vicinity of the building if the owner desires to install SPV power plant on that area.

(II) Battery bank is necessary in case of power cuts.

(Ill) The cost & rates given above are indicative.

KNOW THE PROCEDURE:

DETAILED PROCEDURE FOR INSTALLATION OF ROOFTOP SOLAR POWER PLANTS UNDER NET METERING POLICY:

Name of Activity	Description	Time Schedule
Submission of Application	For installation of solar power plant the applicant has to registered / apply online at any one of i.e. www.netmeteringpunjab.com, www.solarpunjab.com, www.pspcl.in, www.peda.gov.in with copy of latest electricity bill and available shadow free area at the top of roof/walls/open space within the compound.	First 3 weeks of the month
Approval for installation of Rooftop Solar Power Plant	After verification, PSPCL / PEDA will give online approval to the applicant for installation of required capacity Solar Power Plant.	Within 30 days, after the submission of application
Installation of Solar Power Plant	After approval from PSPCL, applicant will contact and install solar power plant from selected suppliers / manufacturers of Solar power plants for facilitation list at PEDA Website <www.peda.gov.in, www.netmetringpunjab.com, www.solarpunjab.com> and submit the work completion report along with photograph of the system and single line diagram of the synchronizing and protection arrangements.	Within 180 days after getting approval from PSPCL/ PEDA.
Installation of Bi-directional Meter	After receiving project completion report, the Bi-directional meter would be installed at the premises of the beneficiary by PSPCL.	Within 10 days
Release of Subsidy	After installation of Bi-directional meter the plant shall be treated as commissioned and the beneficiary will apply for release of subsidy online with PEDA along with the work completion report duly verified by PSPCL.	Within 7 days after submission of Application subject to availability of funds of MNRE, GOI
