Implementing a solar plant dashboard for reduced Operation & Maintenance (O&M) costs and increased profitability

Would the average consumer invest in the stock market without real-time insight into financial performance? Not a chance. We live in a world that craves information, preferably easily accessible and digestible information, especially when it relates to a major financial decision.

Shouldn’t the same hold true for PV installations?

Lior Handelsman

Lior Handelsman, Vice President of Marketing and Product Strategy | SolarEdge

Commercial PV projects are increasingly seen as secure long-term investment opportunities. Like any financial asset, PV systems must be monitored and managed to realise their full potential.

With traditional string inverters, O&M providers have access to limited information. String level or system level monitoring can indicate underperformance of the array, but little else. In order to inspect system issues, skilled technicians have to perform inefficient onsite troubleshooting on inverters operating under load and on DC lines at nearly 1500V. They connect expensive equipment to the arrays in an effort to ‘sift through the tea leaves’ of complex IV trace curves to detect issues. Fortunately, the standard in PV monitoring has been optimised. With MLPE (Module Level Power Electronics) devices, like power optimisers, O&M providers can remotely manage many of the issues. MLPE devices report module-level Voltage and Current at Max Power Point values on cloud-based monitoring platforms. This provides O&M companies high-resolution data on module-level performance to diagnose many issues, without the need to be onsite.

The most advanced PV monitoring and management solutions have the potential to take O&M from a manual, resourceintensive process to an automated, at-a-glance service. More than just a system overview, MLPE solutions deliver modulelevel insights and ensure a plant is performing to the best of its ability at all times. Intelligent, MLPE-supported cloud-based solutions also offer automated reports and alerts:

  • In-depth analytics and reporting on energy yield, system uptime and financial performance
  • Automated, pinpointed alerts for immediate fault detection
  • Remote diagnostics for smarter maintenance planning

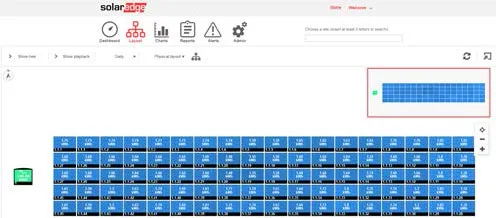

Module-level monitoring systems

Figure 2

For example, figure 1 identifies module 17 in string 1 of inverter 3 as underperforming compared to its neighbors. Module-level monitoring systems are able to detect underperformance like

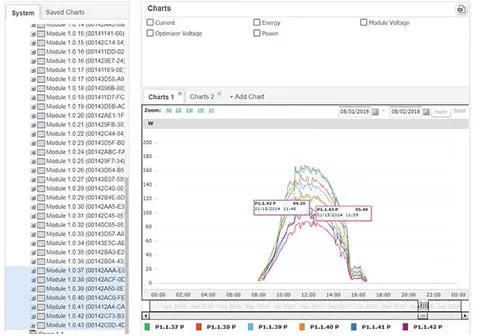

Module level monitoring systems are able to detect underperformance like

Figure 2

this and may be programmed to send automated alerts to the service providers.

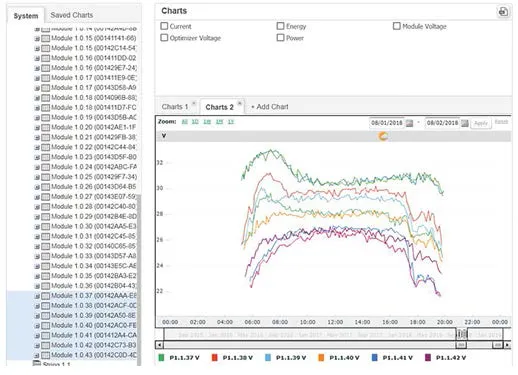

module level monitoring systems are able to detect underperformance

Figure 3

Once alerted to the underperformance, the solar installer, with just a couple clicks of the mouse, can gather more data on the power, voltage, and current output of the problem module (figures 2 and 3). By comparing this module with others in the same array that are performing properly, the O&M provider can make determinations as to the possible failure modes.

With such precise data at their fingertips, solar professionals and system owners can now easily and accurately identify performance challenges (in the above case, likely a failed bypass diode) and rapidly resolve problems. The result is a winwin; solar installers can more efficiently manage portfolios from a central location and identify problems before setting foot at the project site. This gives O&M providers a “Know Before You Go” advantage. They can load the truck with the correct parts to fix the issue the first time. Less on-site maintenance calls (also known as “site visits”) for the professional means a lower support cost and the ability to support more sites more efficiently. Plus, system owners win, with less system downtime eating into their profits.

Since the MLPE devices are persistently connected to the array, they are able to store data in the cloud for the system’s entire lifetime. By analysing historical project data in a monitoring platform (figure 4), such as SolarEdge’s cloud-based monitoring platform, module-level monitoring and management tools can also help stakeholders evaluate and predict system performance, and financial returns, for a given period. This comparative year-over-year snapshot enables smarter financial planning for the system owner.

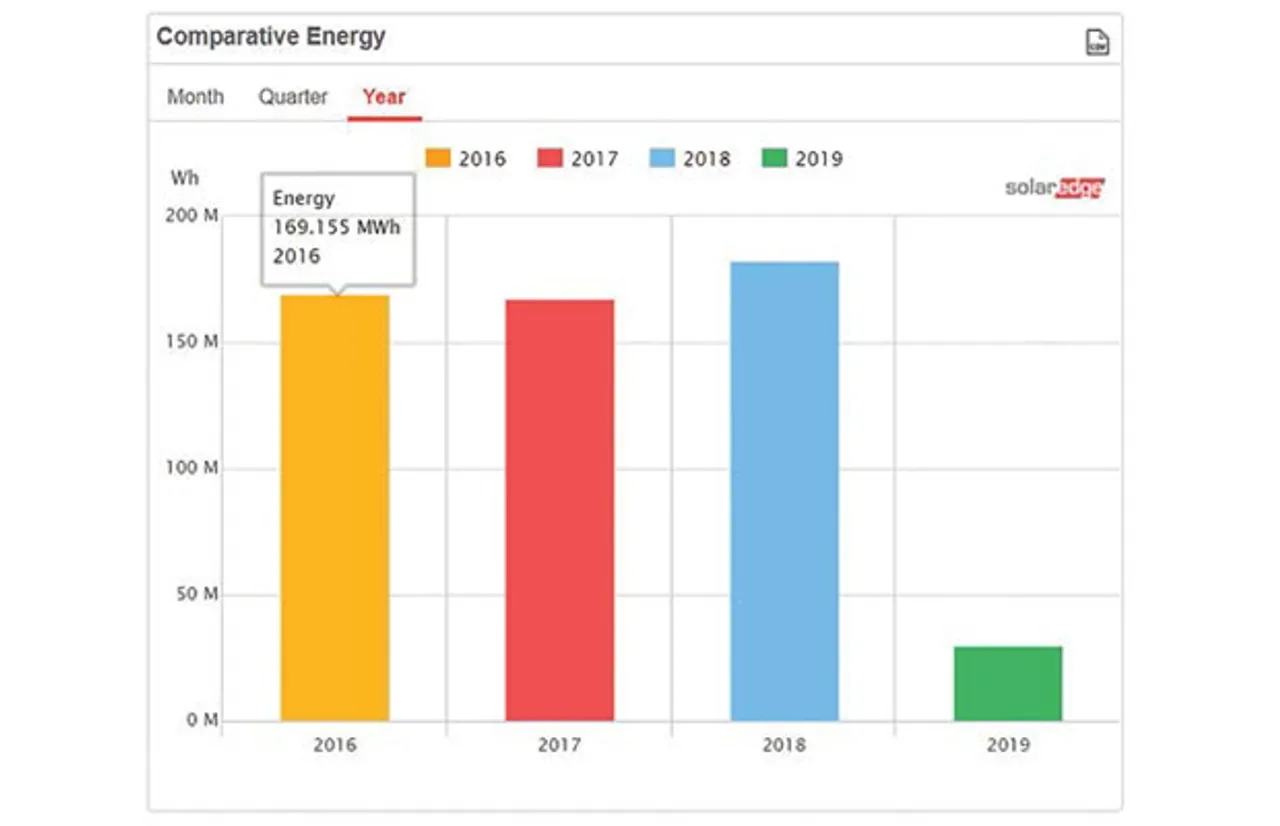

comparative energy

With a mature yet growing solar market, India solar PV owners and installers have recognised the need to minimise risk and make better-informed decisions on how to support their PV assets for 20 years or more. With the breadth of capabilities offered, it’s no wonder that MLPE devices connected to cloud-based monitoring platforms are taking root as a defacto, dashboard-like solution for efficient problem solving,

Comprehensive performance data, with year-over-year comparisons

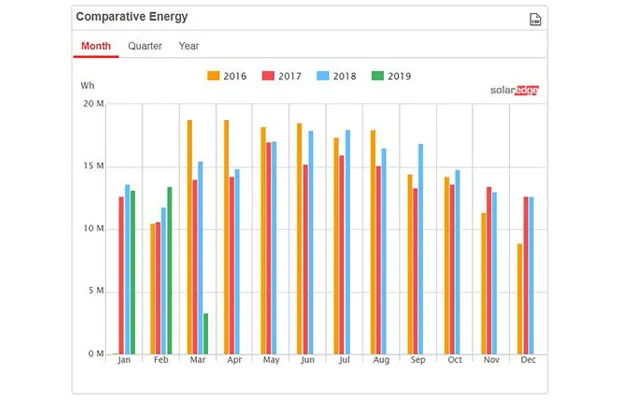

Figure 4. Comprehensive performance data, with year-over-year comparisons

and an indispensable component of lucrative long-term PV investments.
