SolarEdge P800P-5NCDARL Power Optimizer

SolarEdge P800P-5NCDARL Power Optimizer

Product Brief: The P800 commercial power optimizer enables installers to connect two modules to one power optimizer. It is available in two versions: P800s for series connections (for high power 6” cell modules and bi-facial modules) and P800p for parallel connections (for high power 5” cell modules).

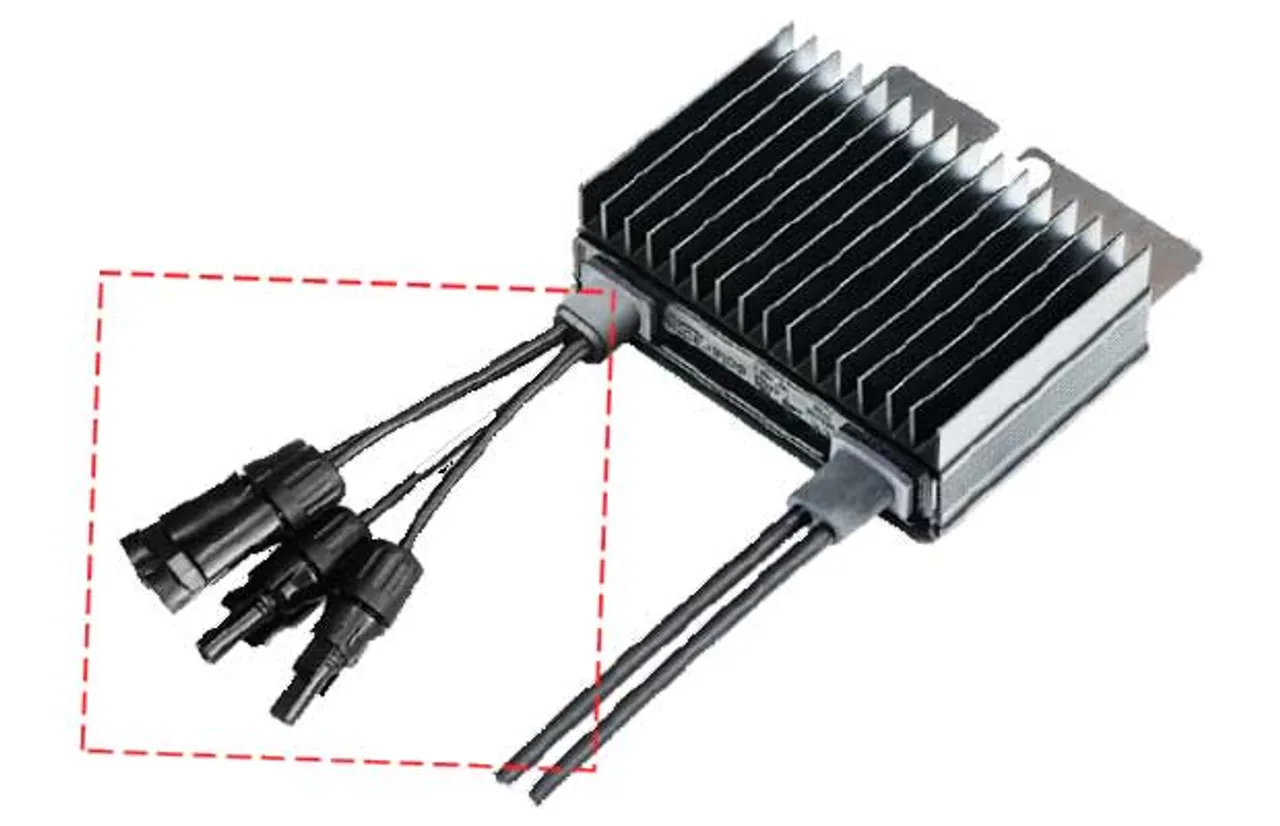

Product Feature: The parallel version (P800P-5NCDARL) has a built-in branch cable to eliminate the need for an external cable. A single input version of the P800p (P800P-5NC4ARL) is also available and should be used when connecting a single module to the optimizer (in cases of an odd number of modules in the string). This ensures there are no unused inputs exposed to outdoor conditions.

Application: The SolarEdge Site Designer can be used for recommended designs and to verify system sizing. Some 208Vac designs can have limitations and we recommend the use of the SolarEdge Site Designer.

Benefits: The P800 power optimizers are compatible with all SolarEdge three-phase inverters. These power optimizers have an increased maximum output current of 18A, enabling the connection of longer strings:

  • When connecting to 208Vac inverters: upto 7.2kWp per string
  • When connecting to 480Vac inverters: upto 15.3kWp per string

Availability: Available for purchase
